Replacement SPROCKET Nose Kits (RSN)

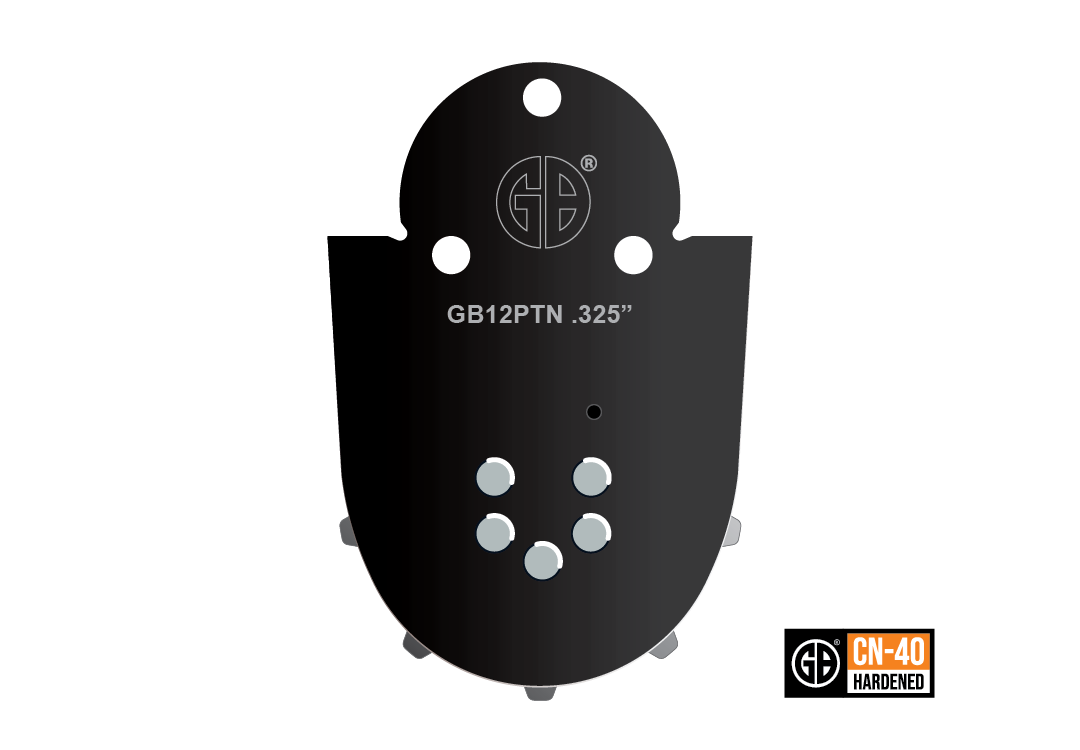

TITANIUM® PRO TOP PN
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the Titanium® Pro Top-PN
What is RSN / CN-40? More information coming soon
| GB PART: | GB12PTN |
| TO FIT: | TITANIUM PROTOP PN |
| GAUGE: | .050″ / 1.3mm |
| PITCH: | .325″ NARROW KERF |
| NOSE: | 12 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |

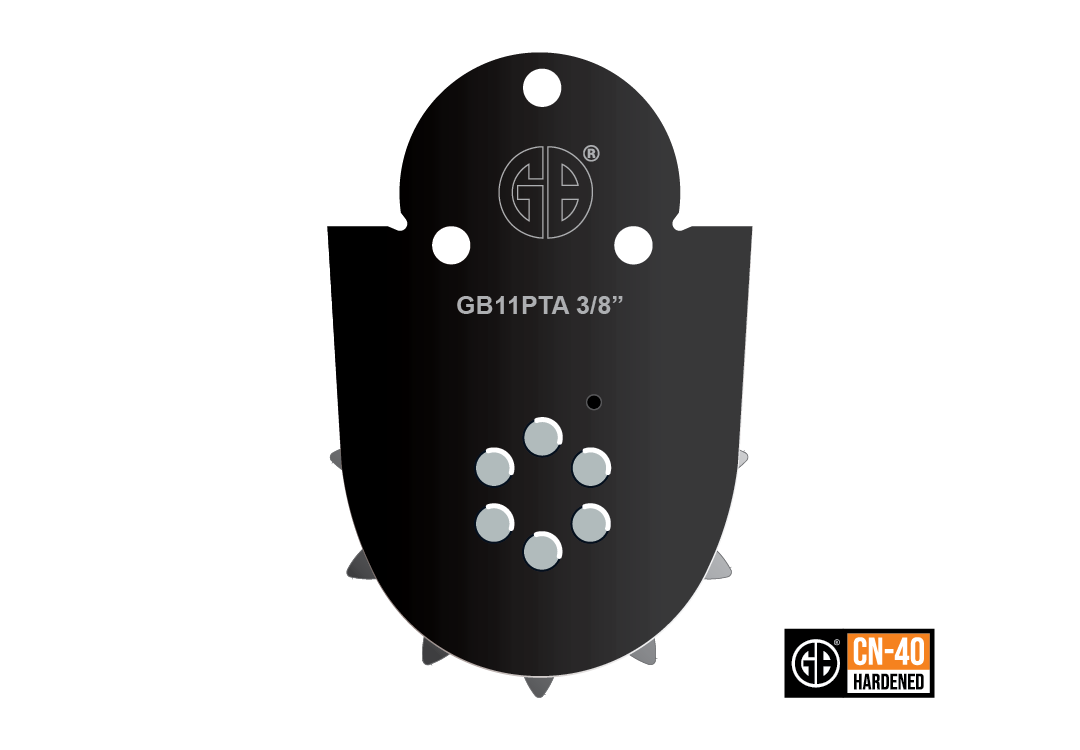

TITANIUM® PRO TOP PA
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the Titanium® Pro Top-PA
What is RSN / CN-40? More information coming soon
| GB PART: | GB11PTA |
| TO FIT: | TITANIUM PROTOP PA |
| GAUGE: | .050″ / 1.3mm .058″ / 1.5mm .063″ / 1.6mm |
| PITCH: | 3/8″ |
| NOSE: | 11 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |

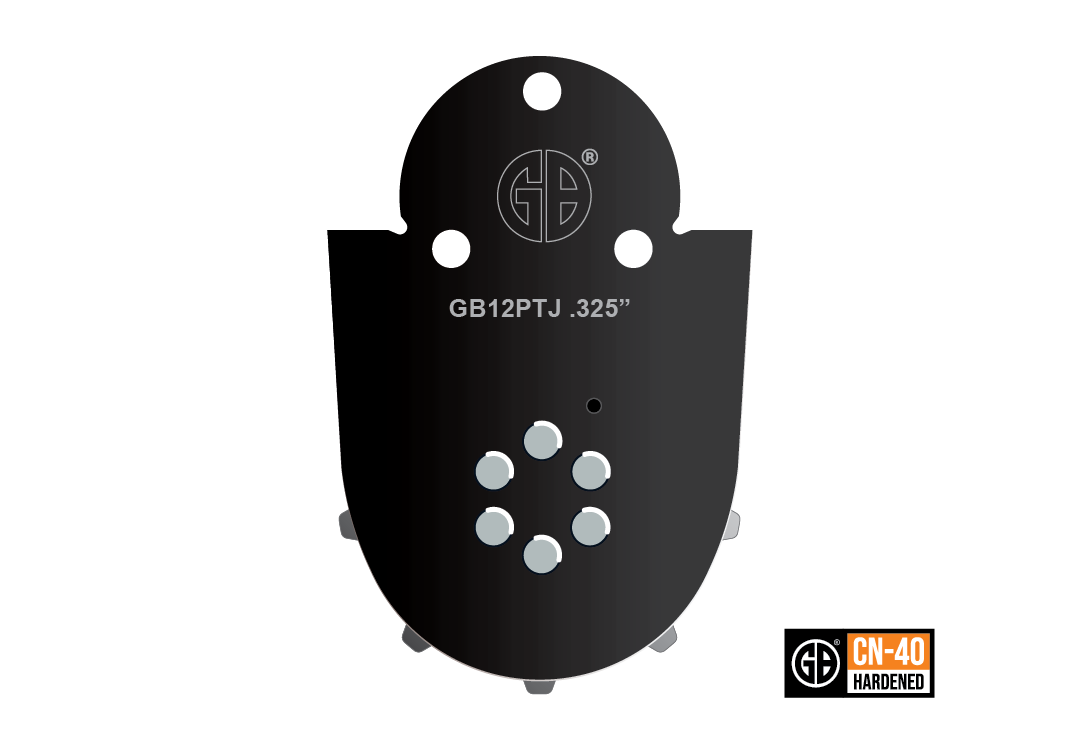

TITANIUM® PRO TOP PJ
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the Titanium® Pro Top-PJ
What is RSN / CN-40? More information coming soon
| GB PART: | GB12PTJ |
| TO FIT: | TITANIUM PROTOP PJ |
| GAUGE: | .058″ / 1.5mm .063″ / 1.6mm |
| PITCH: | .325″ |
| NOSE: | 12 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |
TITANIUM® PRO TOP VQ
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the Titanium® Pro Top-VQ
What is RSN / CN-40? More information coming soon
| GB PART: | GB11VQ |
| TO FIT: | TITANIUM PROTOP VQ |
| GAUGE: | .063″ / 1.6mm |
| PITCH: | .404″ |
| NOSE: | 11 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |

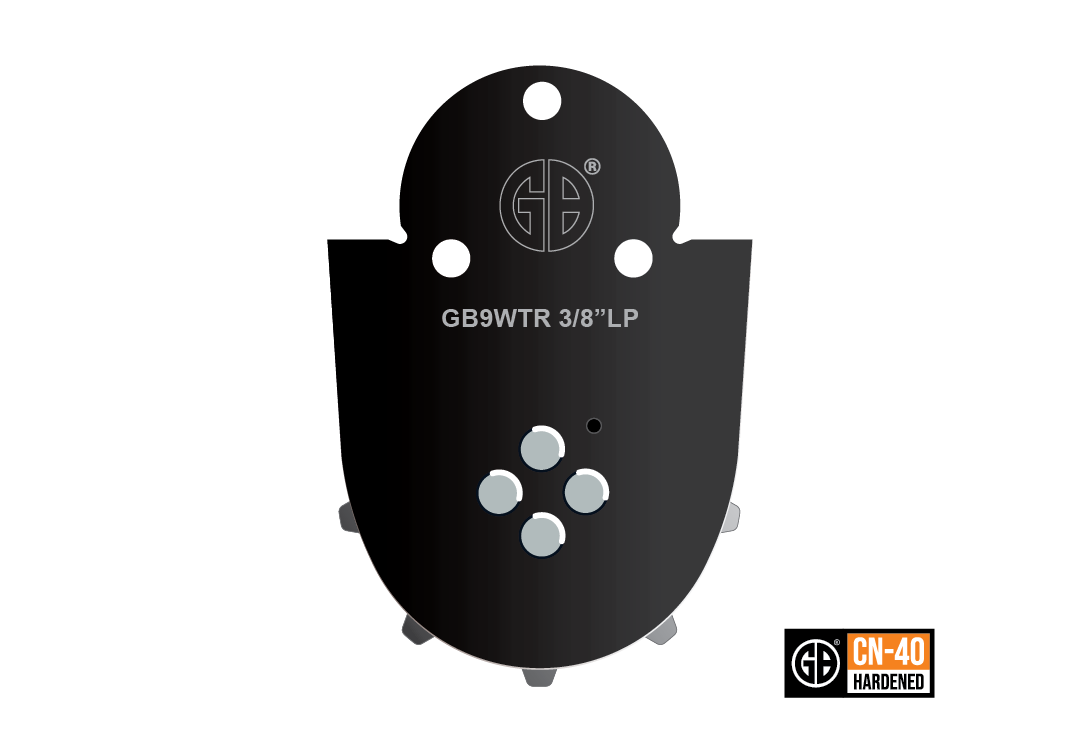

TITANIUM® PRO TOP LOW PROFILE WR
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the Titanium® Pro Top-WR
What is RSN / CN-40? More information coming soon
| GB PART: | GB9WTR |
| TO FIT: | TITANIUM PROTOP LOW PROFILE – WR |
| GAUGE: | .050″ / 1.3mm |
| PITCH: | .3/8″ LP |
| NOSE: | 9 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |

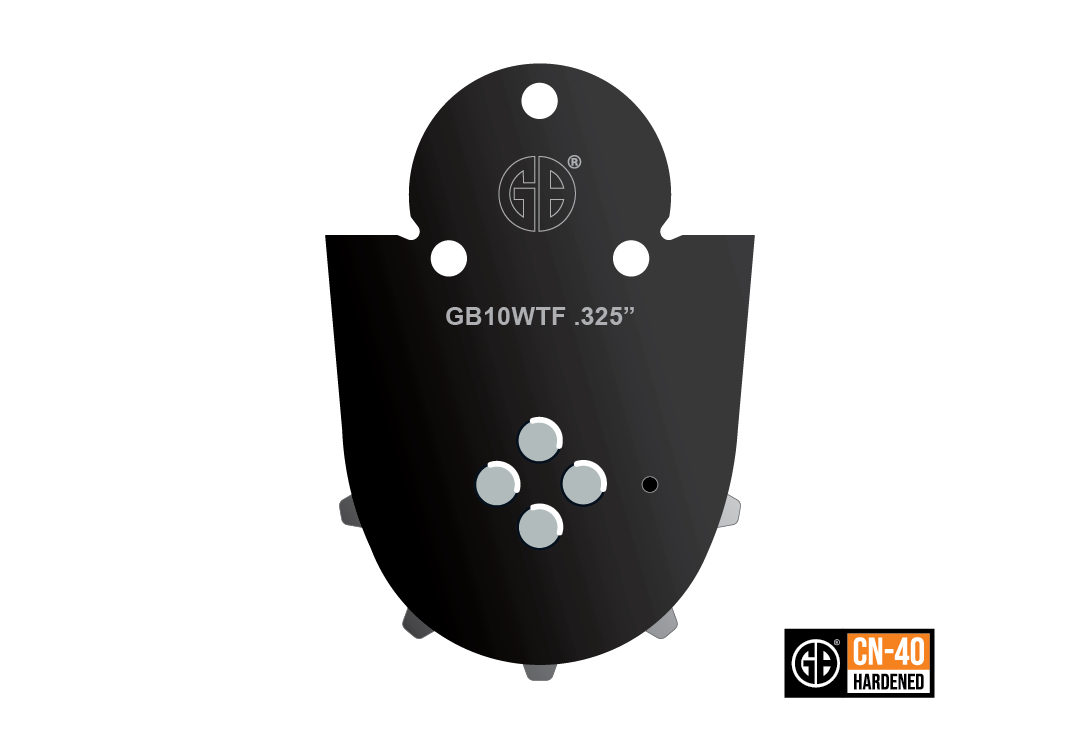

TITANIUM® PRO TOP WF
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for the TITANIUM® Pro Top-WR
What is RSN / CN-40? More information coming soon
| GB PART: | GB10WTF |
| TO FIT: | TITANIUM PROTOP LOW PROFILE-WR TITANIUM PROTOP WF TITANIUM PROTOP MILL-WR |
| GAUGE: | .050″ / 1.3mm |
| PITCH: | .325″ |
| NOSE: | 10 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 3+1 Rivets |

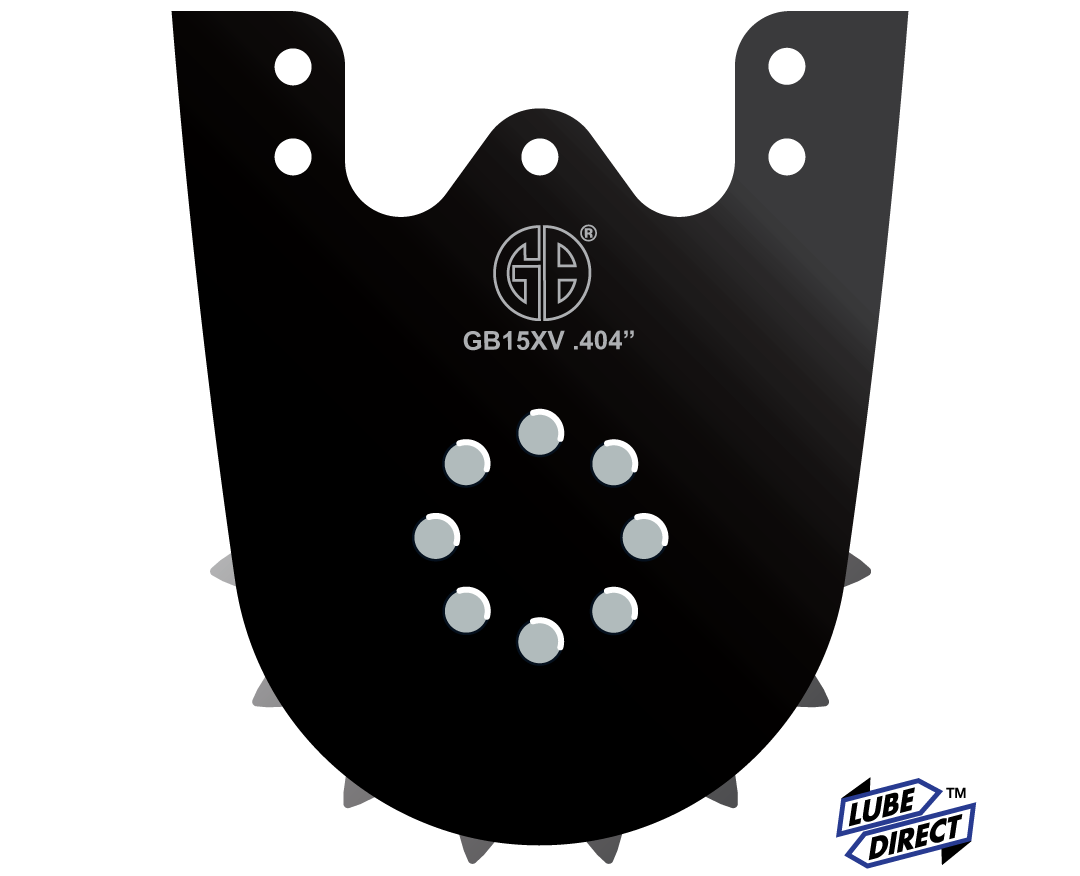

TITANIUM®-XV
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for Titanium® XV and Titanium® XV Stump Treatment Guide Bars.
Precision engineered for maximum strength and durability the Titanium®-XV nose is in a league of it’s own! The XV nose is equipped with precision bearings that minimize friction and reduces wear, extending the life of the nose.
What is Lube Direct? More infomation
| GB PART: | GB15XV |
| TO FIT: | TITANIUM-XV |
| GAUGE: | .080″ / 2.0mm |
| PITCH: | .404″ |
| NOSE: | 15 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 5+1 Rivets |

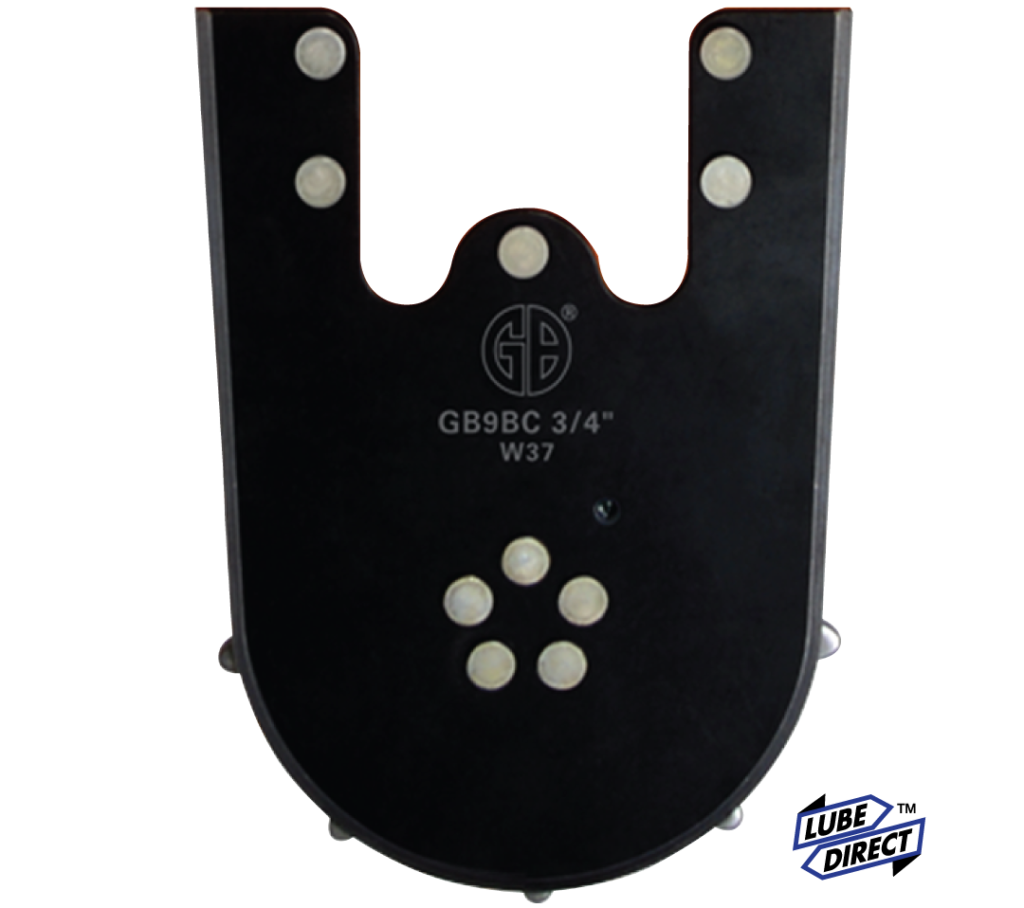

TITANIUM®-BC
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for Titanium® BC and Titanium® BC Stump Treatment Guide Bars.
The Titanium®-BC nose is equipped with precision bearings that minimize friction and reduces wear, extending the life of the nose.
What is Lube Direct? More infomation
| GB PART: | GB9BC |
| TO FIT: | TITANIUM-BC |
| GAUGE: | .122″ |
| PITCH: | 3/4″ |
| NOSE: | 9 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 5+1 Rivets |

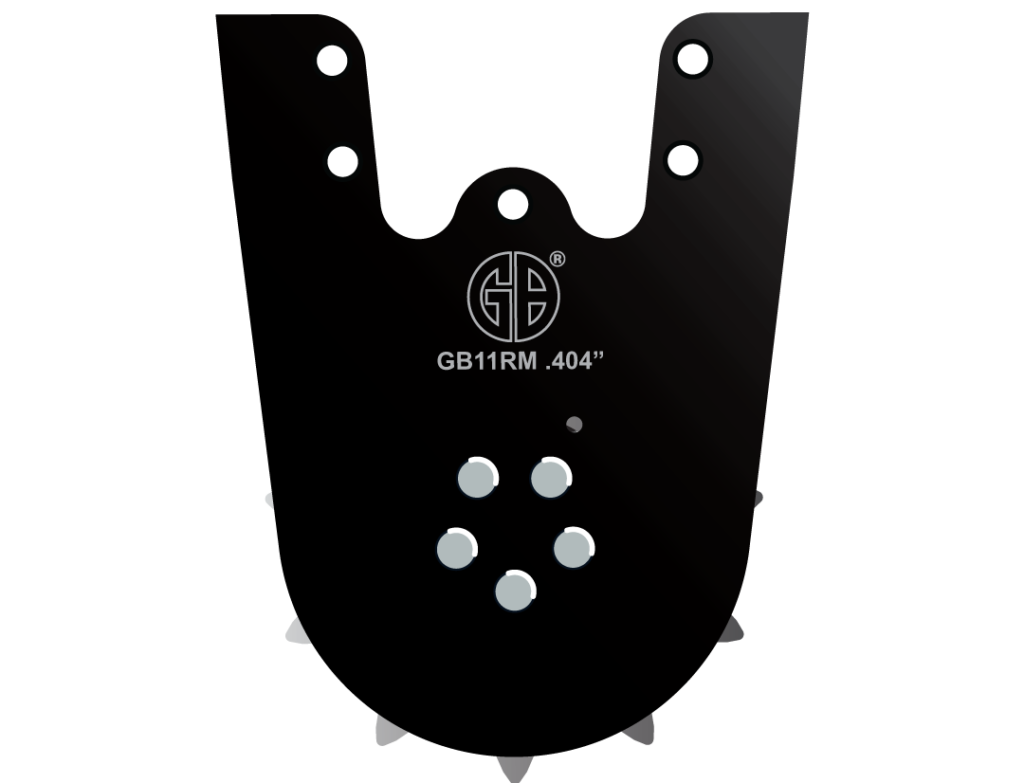

TITANIUM® R-LINE (.080″)
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for Titanium® R-Line 80 Guide Bars.
| GB PART: | GB11RM |
| TO FIT: | TITANIUM R-Line 80 |
| GAUGE: | .080″ / 2.0mm |
| PITCH: | .404″ |
| NOSE: | 11 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 5+1 Rivets |

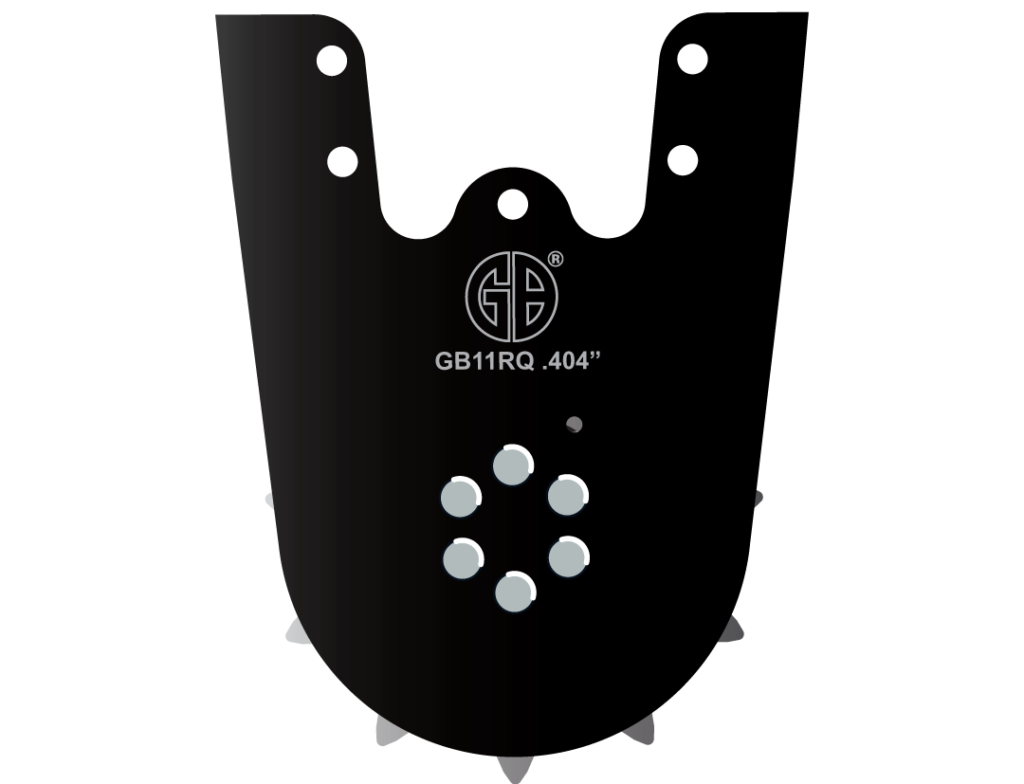

TITANIUM® R-LINE (0.63″)
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for TITANIUM® R-LINE 63 Guide Bars.
Also compatible with: TITANIUM EXTRA-LONG
| GB PART: | GB11RQ |
| TO FIT: | TITANIUM R-Line 63 TITANIUM EXTRA-LONG |
| GAUGE: | .063″ / 1.6mm |
| PITCH: | .404″ |
| NOSE: | 11 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 5+1 Rivets |

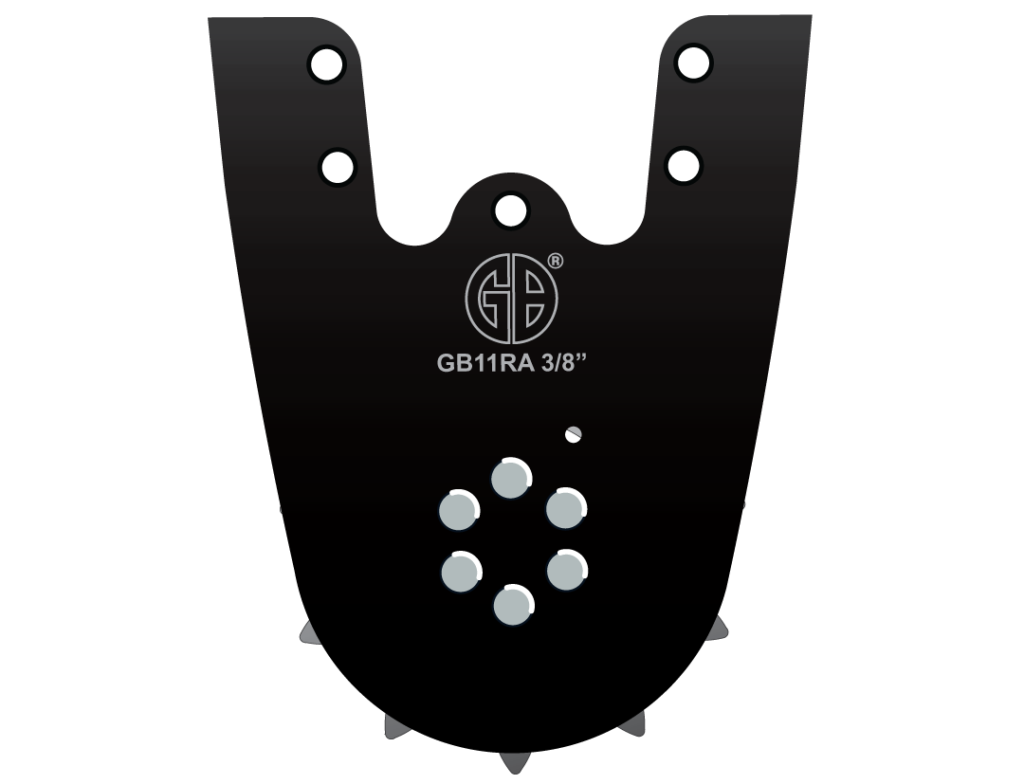

TITANIUM® EXTRA-LONG
REPLACEMENT SPROCKET NOSE
Complete replacement sprocket nose kit for TITANIUM® EXTRA-LONG Guide Bars.
Also compatible with: TITANIUM R-LINE 63
| GB PART: | GB11RA |
| TO FIT: | TITANIUM EXTRA-LONG TITANIUM R-Line 63 |
| GAUGE: | .063″ / 1.6mm |
| PITCH: | 3/8″ |
| NOSE: | 11 Tooth Replaceable Sprocket Nose |
| FITTINGS: | Supplied with 5+1 Rivets |
